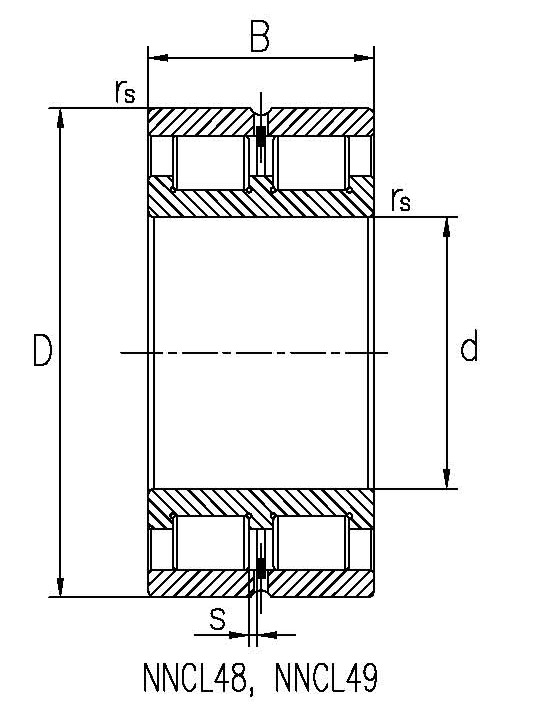

| INA 型號 | 外形尺寸(mm) | 基本負荷(KN) | 極限轉(zhuǎn)速(r/min) | 重量(KG) | | d | D | B | rsmin | s | 動 | 靜 |
| SL024912 |
60 | 85 | 25 | 1 | 1 | 71 | 125 | 4500 | 0.47 |
| SL024914 |
70 | 100 | 30 | 1 | 1 | 108 | 189 | 3800 | 0.75 |
| SL024916 |
80 | 110 | 30 | 1 | 1 | 115 | 211 | 3400 | 0.85 |
| SL024918 |
90 | 125 | 35 | 1.1 | 1.5 | 155 | 295 | 3000 | 1.3 |
| SL024920 |
100 | 140 | 40 | 1.1 | 2 | 196 | 380 | 2700 | 1.9 |
| SL024922 |
110 | 150 | 40 | 1.1 | 2 | 204 | 410 | 2500 | 2.1 |
| SL024924 |
120 | 165 | 45 | 1.1 | 3 | 228 | 455 | 2300 | 2.85 |
| SL024926 |
130 | 180 | 50 | 1.5 | 4 | 265 | 530 | 2100 | 3.8 |
| SL024928 |
140 | 190 | 50 | 1.5 | 4 | 275 | 570 | 2000 | 4.1 |
| SL024830 |
150 | 190 | 40 | 1.1 | 2 | 237 | 550 | 1900 | 2.8 |
| SL024930 |
150 | 210 | 60 | 2 | 4 | 415 | 840 | 1800 | 6.45 |
| SL024832 |
160 | 200 | 40 | 2.1 | 2 | 243 | 580 | 1800 | 3 |
| SL024932 |
160 | 220 | 60 | 2 | 4 | 435 | 900 | 1700 | 6.8 |
| SL024834 |
170 | 215 | 45 | 1.1 | 3 | 265 | 620 | 1700 | 3.95 |
| SL024934 |
170 | 230 | 60 | 2 | 4 | 445 | 950 | 1600 | 7.1 |
| SL024836 |
180 | 225 | 45 | 1.1 | 3 | 275 | 660 | 1600 | 4.15 |
| SL024936 |
180 | 250 | 69 | 2 | 4 | 580 | 1230 | 1500 | 10.5 |
| SL024838 |
190 | 240 | 50 | 1.5 | 4 | 315 | 750 | 1500 | 5.45 |
| SL024938 |
190 | 260 | 69 | 2 | 4 | 590 | 1290 | 1400 | 10.9 |
| SL024840 |
200 | 250 | 50 | 1.5 | 4 | 325 | 790 | 1400 | 5.7 |
| SL024940 |
200 | 280 | 80 | 2.1 | 5 | 690 | 1480 | 1400 | 15.3 |
| SL024844 |
220 | 270 | 50 | 1.5 | 4 | 340 | 870 | 1300 | 6.2 |
| SL024944 |
220 | 300 | 80 | 2.1 | 5 | 720 | 1590 | 1200 | 16.7 |
| SL024848 |
240 | 300 | 60 | 2 | 4 | 520 | 1290 | 1200 | 9.9 |
| SL024948 |
240 | 320 | 80 | 2.1 | 5 | 750 | 1740 | 1200 | 17.9 |
| SL024852 |
260 | 320 | 60 | 2 | 4 | 540 | 1400 | 1100 | 10.6 |
| SL024952 |
260 | 360 | 100 | 2.1 | 6 | 1120 | 2500 | 1000 | 31.2 |
| SL024856 |
280 | 350 | 69 | 2 | 4 | 710 | 1860 | 1000 | 15.6 |
| SL024956 |
280 | 380 | 100 | 2.1 | 6 | 1170 | 2700 | 1000 | 33.1 |
| SL024860 |
300 | 380 | 80 | 2.1 | 6 | 830 | 2120 | 950 | 22 |
|
