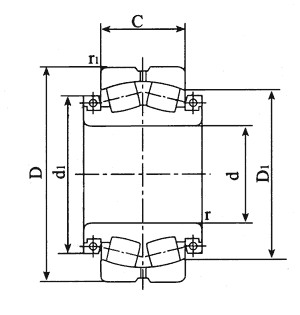

| 外形尺寸(mm) | 基本負(fù)荷(KN) | Dimensions (mm) | 重量(KG) | | d | D | B | C | rsmin | r1smin | 動 | 靜 | d1 | D1 |
| 120 | 200 | 142 | 80 | 2 | 2 | 555 | 900 | 166 | 169 | 17 | |
| 140 | 230 | 102 | 53 | 2 | 2 | 370 | 600 | 180 | 190 | 14 | |
| 140 | 290 | 110 | 80 | 3 | 3 | 838 | 1145 | 193 | 247.5 | 31.2 | |
| 148 | 225 | 142 | 75 | 2.1 | 2.1 | 535 | 950 | 180 | 197 | 14 | |
| 180 | 300 | 125 | 74 | 2.1 | 2.1 | 715 | 1200 | 220 | 248 | 30 | |
| 280 | 500 | 260 | 176 | 5 | 5 | 2710 | 4650 | 419 | 439 | 175 | |
| 300 | 500 | 240 | 160 | 5 | 5 | 2527 | 4465 | 418 | 434 | 165 | |
| 320 | 540 | 250 | 176 | 6 | 6 | 2395 | 4586 | 439 | 454 | 196.5 | |
| 340 | 580 | 280 | 190 | 5 | 5 | 2930 | 5574 | 475 | 487 | 235 | |
| 360 | 540 | 220 | 134 | 5 | 5 | 2250 | 4500 | 476 | 482 | 155 | |
| 400 | 600 | 240 | 148 | 5 | 5 | 2880 | 5850 | 522 | 541 | 205 | |
| 420 | 620 | 238 | 150 | 6 | 6 | 2880 | 5850 | 542 | 562 | 215 | |
| 460 | 700 | 245 | 165 | 6 | 6 | 3280 | 6550 | 604 | 635 | 340 | |
| 470 | 720 | 270 | 167 | 6 | 6 | 3570 | 7500 | 646 | 656 | 375 | |
| 560 | 800 | 230 | 150 | 5 | 5 | 3340 | 8150 | 669 | 742 | 320 | |
| 560 | 870 | 330 | 200 | 6 | 6 | 5060 | 11000 | 733 | 786 | 580 | |
| 600 | 920 | 310 | 212 | 9.5 | 7.5 | 5640 | 12000 | 798 | 837 | 690 | |
| 600 | 980 | 515 | 375 | 7.5 | 7.5 | 10400 | 21600 | 811 | 833 | 1350 | |
| 630 | 920 | 310 | 212 | 16 | 7.5 | 5245 | 11390 | 800 | 825 | 628 | |
| 670 | 980 | 350 | 230 | 7.5 | 7.5 | 6440 | 14000 | 860 | 890 | 800 | |
| 710 | 950 | 375 | 243 | 6 | 6 | 5750 | 15300 | 860 | 868 | 700 | |
| 710 | 1030 | 360 | 236 | 7.5 | 7.5 | 7020 | 15600 | 901 | 939 | 880 | |
| 750 | 1000 | 360 | 250 | 6 | 6 | 6300 | 17000 | 900 | 916 | 710 | |
| 750 | 1090 | 340 | 250 | 8 | 8 | 6600 | 15330 | 950 | 980 | 932 | |
| 750 | 1090 | 475 | 335 | 7.5 | 7.5 | 9950 | 24000 | 938 | 969 | 1300 | |
| 800 | 1060 | 370 | 258 | 6 | 6 | 6900 | 18600 | 955 | 968 | 8100 | |
| 800 | 1150 | 450 | 345 | 16 | 8 | 10000 | 24800 | 1010 | 1018 | 1500 | |
| 850 | 1120 | 380 | 272 | 6 | 6 | 7360 | 2800 | 1008 | 1028 | 830 | |
| 850 | 1180 | 331 | 206 | 6 | 6 | 6440 | 17000 | 1070 | 1100 | 880 | |
| 850 | 1280 | 430 | 280 | 7.5 | 7.5 | 10100 | 23200 | 1120 | 1177 | 1550 | |
|
